Coordinate systems

In any matplotlib figure, there is at least two different coordinate systems that co-exist anytime. One is related to the figure (FC) while the others are related to each of the individual plots (DC). Each of these coordinate systems exists in normalized (NxC) or native version (xC) as illustrated in figures fig-coordinates-cartesian and fig-coordinates-polar. To convert a coordinate from one system to the other, matplotlib provides a set of transform functions:

fig = plt.figure(figsize=(6, 5), dpi=100)
ax = fig.add_subplot(1, 1, 1)
ax.set_xlim(0,360), ax.set_ylim(-1,1)

#  FC : Figure coordinates (pixels)
# NFC : Normalized figure coordinates (0 → 1)
#  DC : Data coordinates (data units)
# NDC : Normalized data coordinates (0 → 1)

DC_to_FC = ax.transData.transform
FC_to_DC = ax.transData.inverted().transform

NDC_to_FC = ax.transAxes.transform
FC_to_NDC = ax.transAxes.inverted().transform

NFC_to_FC = fig.transFigure.transform
FC_to_NFC = fig.transFigure.inverted().transform

The co-existing coordinate systems within a figure using Cartesian projection. FC: Figure Coordinates, NFC Normalized Figure Coordinates, DC: Data Coordinates, NDC: Normalized Data Coordinates. fig-coordinates-cartesian

The co-existing coordinate systems within a figure using Polar projection. FC: Figure Coordinates, NFC Normalized Figure Coordinates, DC: Data Coordinates, NDC: Normalized Data Coordinates. fig-coordinates-polar

Let’s test these functions on some specific points (corners):

# Top right corner in normalized figure coordinates
print(NFC_to_FC([1,1]))  # (600,500)

# Top right corner in normalized data coordinates
print(NDC_to_FC([1,1]))  # (540,440)

# Top right corner in data coordinates
print(DC_to_FC([360,1])) # (540,440)

Since we also have the inverse functions, we can create our own transforms. For example, from native data coordinates (DC) to normalized data coordinates (NDC):

# Native data to normalized data coordinates
DC_to_NDC = lambda x: FC_to_NDC(DC_to_FC(x))

# Bottom left corner in data coordinates
print(DC_to_NDC([0, -1]))  # (0.0, 0.0)

# Center in data coordinates
print(DC_to_NDC([180,0]))  # (0.5, 0.5)

# Top right corner in data coordinates
print(DC_to_NDC([360,1]))  # (1.0, 1.0)

When using Cartesian projection, the correspondence is quite clear between the normalized and native data coordinates. With other kind of projection, things work just the same even though it might appear less obvious. For example, let us consider a polar projection where we want to draw the outer axes border. In normalized data coordinates, we know the coordinates of the four corners, namely (0,0), (1,0), (1,1) and (0,1). We can then transform these normalized data coordinates back to native data coordinates and draw the border. There is however a supplementary difficulty because those coordinates are beyond the axes limit and we’ll need to tell matplotlib to not care about the limit using the clip_on arguments.

fig = plt.figure(figsize=(5, 5), dpi=100)
ax = fig.add_subplot(1, 1, 1, projection='polar')

FC_to_DC = ax.transData.inverted().transform
NDC_to_FC = ax.transAxes.transform
NDC_to_DC = lambda x: FC_to_DC(NDC_to_FC(x))
P = NDC_to_DC([[0,0], [1,0], [1,1], [0,1], [0,0]])

plt.plot(P[:,0], P[:,1], clip_on=False, zorder=-10
         color="k", linewidth=1.0, linestyle="--", )
plt.scatter(P[:-1,0], P[:-1,1],
           clip_on=False, facecolor="w", edgecolor="k")
plt.show()

The result is shown on figure fig-transforms-polar.

Axes boundaries in polar projection using a transform from normalized data coordinates to data coordinates (coordinates/transform-polar.py). fig-transforms-polar

However, most of the time, you won’t need to use these transform functions explicitly but rather implicitly. For example, consider the case where you want to add some text over a specific plot. For this, you need to use the text function and specify what is to be written (of course) and the coordinates where you want to display the text. The question (for matplotlib) is how to consider these coordinates? Are they expressed in data coordinates? normalized data coordinates? normalized figure coordinates? The default is to consider they are expressed in data coordinates. Consequently, if you want to us a different system, you’ll need to explicitly specify a transform when calling the function. Let’s say for example we want to add a letter on the bottom left corner. We can write:

fig = plt.figure(figsize=(6, 5), dpi=100)
ax = fig.add_subplot(1, 1, 1)

ax.text(0.1, 0.1, "A", transform=ax.transAxes)
plt.show()

The letter will be placed at 10% from the left spine and 10% from the bottom spine. If the two spines have the same physical size (in pixels), the letter will be equidistant from the right and bottom spines. But, if they have different size, this won’t be true anymore and the results will not be very satisfying (see panel A of figure fig-transforms-letter). What we want to do instead is to specify a transform that is a combination of the normalized data coordinates (0,0) plus an offset expressed in figure native units (pixels). To do that, we need to build our own transform function to compute the offset:

from matplotlib.transforms import ScaledTranslation

fig = plt.figure(figsize=(6, 4))

ax = fig.add_subplot(2, 1, 1)
plt.text(0.1, 0.1, "A", transform=ax.transAxes)

ax = fig.add_subplot(2, 1, 2)
dx, dy = 10/fig.dpi, 10/fig.dpi
offset = ScaledTranslation(dx, dy, fig.dpi_scale_trans)
plt.text(0, 0, "B", transform=ax.transAxes + offset)

plt.show()

The result is illustrated on panel B of figure fig-transforms-letter. The text is now properly positioned and will stay at the right position independently of figure aspect ratio or data limits.

Using transforms to position precisely a text over a plot. Top panel uses normalized data coordinates (0.1,0.1), bottom panel uses normalized data coordinates (0.0,0.0) plus an offset (10,10) expressed in figure coordinates (coordinates/transform-letter.py). fig-transforms-letter

Things can become even more complicated when you need a different transform on the X and Y axis. Let us consider for example the case where you want to add some text below the X tick labels. The X position of the tick labels is expressed in data coordinates, but how do we put something under as illustrated on figure fig-transforms-blend?

Precise placement (arrows below X axis tick labels) using blended transform (coordinates/transforms-blend.py). fig-transforms-blend

The natural unit for text is point and we thus want to position our arrow using a Y offset expressed in points. To do that, we need to use a blend transform:

point = 1/72
fontsize = 12
dx, dy = 0, -1.5*fontsize*point
offset = ScaledTranslation(dx, dy, fig.dpi_scale_trans)
transform = blended_transform_factory(
                 ax.transData, ax.transAxes+offset)

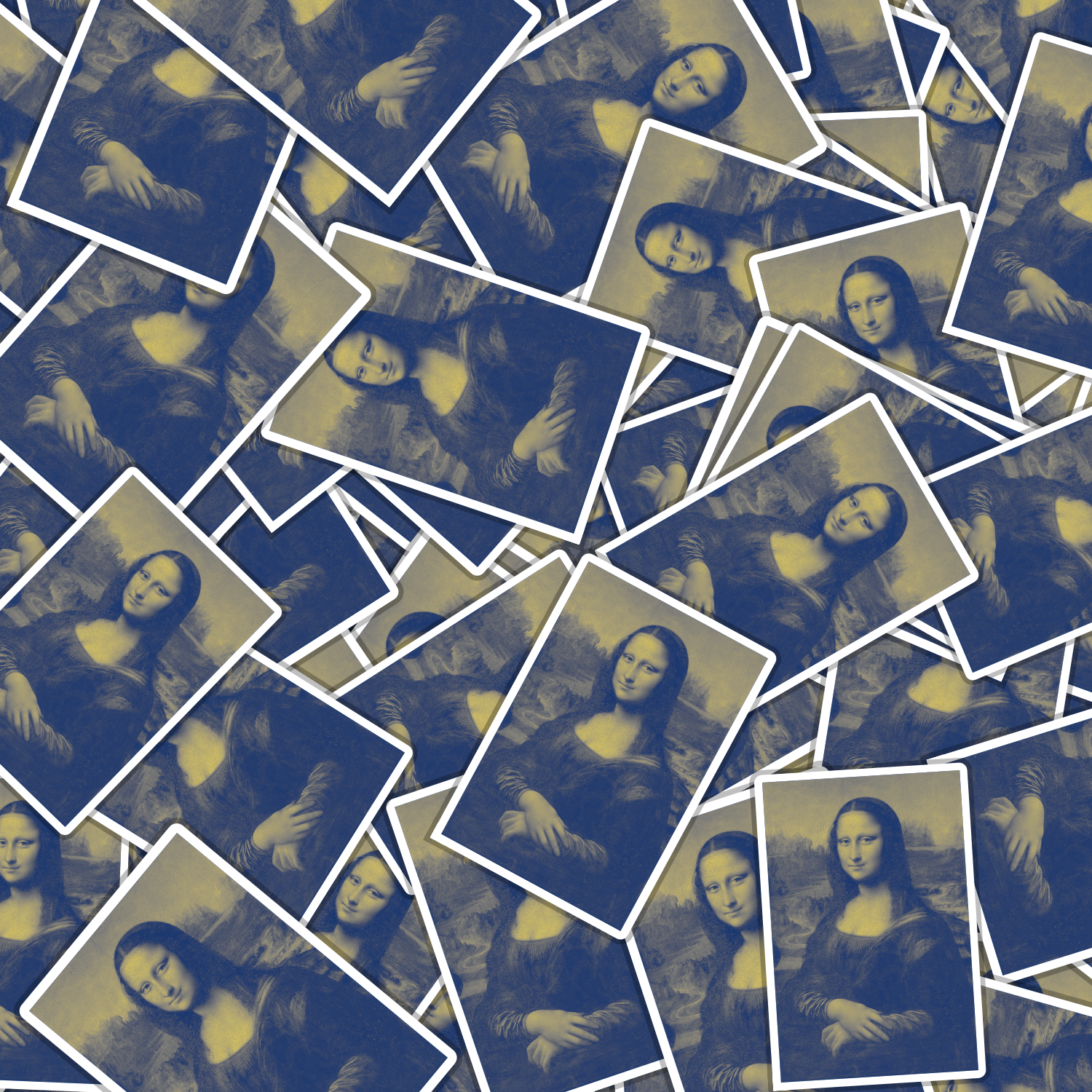

We can also use transformations to a totally different usage as shown on figure figure-collage. To obtain such figure, I rewrote the imshow function to apply translation, scaling and rotation and I call the function 200 times with random values.

def imshow(ax, I, position=(0,0), scale=1, angle=0):
    height, width = I.shape
    extent = scale * np.array([-width/2, width/2,
                               -height/2, height/2])
    im = ax.imshow(I, extent=extent, zorder=zorder)
    t = transforms.Affine2D().rotate_deg(angle).translate(*position)
    im.set_transform(t + ax.transData)

Collage figure-collage (sources: coordinates/collage.py).

Transformations are quite powerful tools even though you won’t manipulate them too often in your daily life. But there are a few cases where you’ll be happy to know about them. You can read further on transforms and coordinates with the Transformation tutorial on the matplotlib website.

Real case usage

Let’s now study a real case of transforms as shown on figure fig-transforms-hist. This is a simple scatter plot showing some Gaussian data, with two principal axis. I added a histogram that is orthogonal to the first principal component axis to show the distribution on the main axis. This figure might appear simple (a scatter plot and an oriented histogram) but the reality is quite different and rendering such a figure is far from obvious. The main difficulty is to have the histogram at the right position, size and orientation knowing that position must be set in data coordinates, size must be given in figure normalized coordinates and orientation in degrees. To complicate things, we want to express the elevation of the text above the histogram bars in data points. |newline|

Rotated histogram aligned with second main PCA axis (coordinates/transforms-hist.py). fig-transforms-hist

You can have a look at the sources for the complete story but let’s concentrate on the main difficulty, that is adding a rotated floating axis. Let us start with a simple figure:

import numpy as np
import matplotlib.pyplot as plt
from matplotlib.transforms import Affine2D
import mpl_toolkits.axisartist.floating_axes as floating

fig = plt.figure(figsize=(8,8))
ax1 = plt.subplot(1,1,1, aspect=1,
                  xlim=[0,10], ylim=[0,10])

Let’s imagine we want to have a floating axis whose center is (5,5) in data coordinates, size is (5,3) in data coordinates and orientation is -30 degrees:

center = np.array([5,5])
size = np.array([5,3])
orientation = -30
T = size/2*[(-1,-1), (+1,-1), (+1,+1), (-1,+1)]
rotation = Affine2D().rotate_deg(orientation)
P = center + rotation.transform(T)

In the code above, we defined the four points delimiting the extent of our new axis and we took advantage of matplotlib affine transforms to do the actual rotation. At this point, we have thus four points describing the border of the axis in data coordinates and we need to transform them in figure normalized coordinates because the floating axis requires normalized figure coordinates.

DC_to_FC = ax1.transData.transform
FC_to_NFC = fig.transFigure.inverted().transform
DC_to_NFC = lambda x: FC_to_NFC(DC_to_FC(x))

We have one supplementary difficulty because the position of a floating axis needs to be defined in terms of the non-rotated bounding box:

xmin, ymin = DC_to_NFC((P[:,0].min(), P[:,1].min()))
xmax, ymax = DC_to_NFC((P[:,0].max(), P[:,1].max()))

We now have all the information to add our new axis:

transform = Affine2D().rotate_deg(orientation)
helper = floating.GridHelperCurveLinear(
              transform, (0, size[0], 0, size[1]))
ax2 = floating.FloatingSubplot(
              fig, 111, grid_helper=helper, zorder=0)
ax2.set_position((xmin, ymin, xmax-xmin, ymax-xmin))
fig.add_subplot(ax2)

The result is shown on figure fig-transforms-floating-axis.

Exercise

Exercise 1 When you specify the size of markers in a scatter plot, this size is expressed in points. Try to make a scatter plot whose size is expressed in data points such as to obtain figure fig-transforms-exercise-1.

A scatter plot whose marker size is expressed in data coordinates instead of points (coordinates/transforms-exercise-1.py). fig-transforms-exercise-1

A floating and rotated floating axis with controlled position size and rotation (coordinates/transforms-floating-axis.py). fig-transforms-floating-axis
